Description

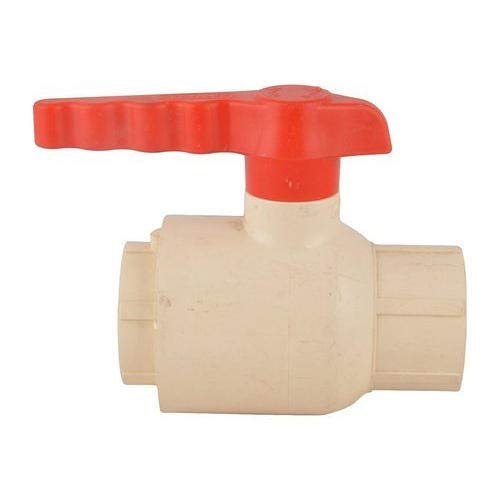

Ashirvad CPVC ball valve for shutting off hot & cold water flow.
QUARTER-TURN SHUTOFF — A quarter turn of the handle fully opens or closes water flow.
HOT & COLD WATER RATED — Safe to install on both hot and cold CPVC lines.
SOLVENT-WELD BOTH ENDS — Both ends join with CPVC Solvent Cement.
Specifications
Brand
Ashirvad
Material
CPVC
Available Sizes
3/4 inch, 1 inch, 1 1/4 inch, 1 1/2 inch, 2 inch
Connection Type
Solvent Weld
How to Use
1. Cut & Deburr — Cut the CPVC pipe square with a hacksaw or pipe cutter, then deburr the edge and lightly chamfer it so it seats fully into the fitting.
2. Dry-Fit — Test-fit the pipe and fitting without cement to confirm alignment and depth before applying any adhesive.
3. Apply Solvent Cement — Apply Ashirvad CPVC Solvent Cement evenly to both the pipe end and the inside of the fitting socket.
4. Join & Hold — Push the pipe fully into the fitting with a quarter-turn, align it correctly, and hold for 30 seconds while the joint sets.
5. Cure Before Pressure Testing — Let the joint cure per the cement's instructions before pressurizing the line — usually a few hours for handling, longer for full pressure.
FAQ
Q: Where should I install a shutoff valve? A: Typically before fixtures, water heaters, or any point you'd want to isolate for repairs without shutting off the whole building.
Q: Can this valve fail closed or stick? A: Like any valve, exercise it periodically (open/close) so it doesn't seize in one position over time.
