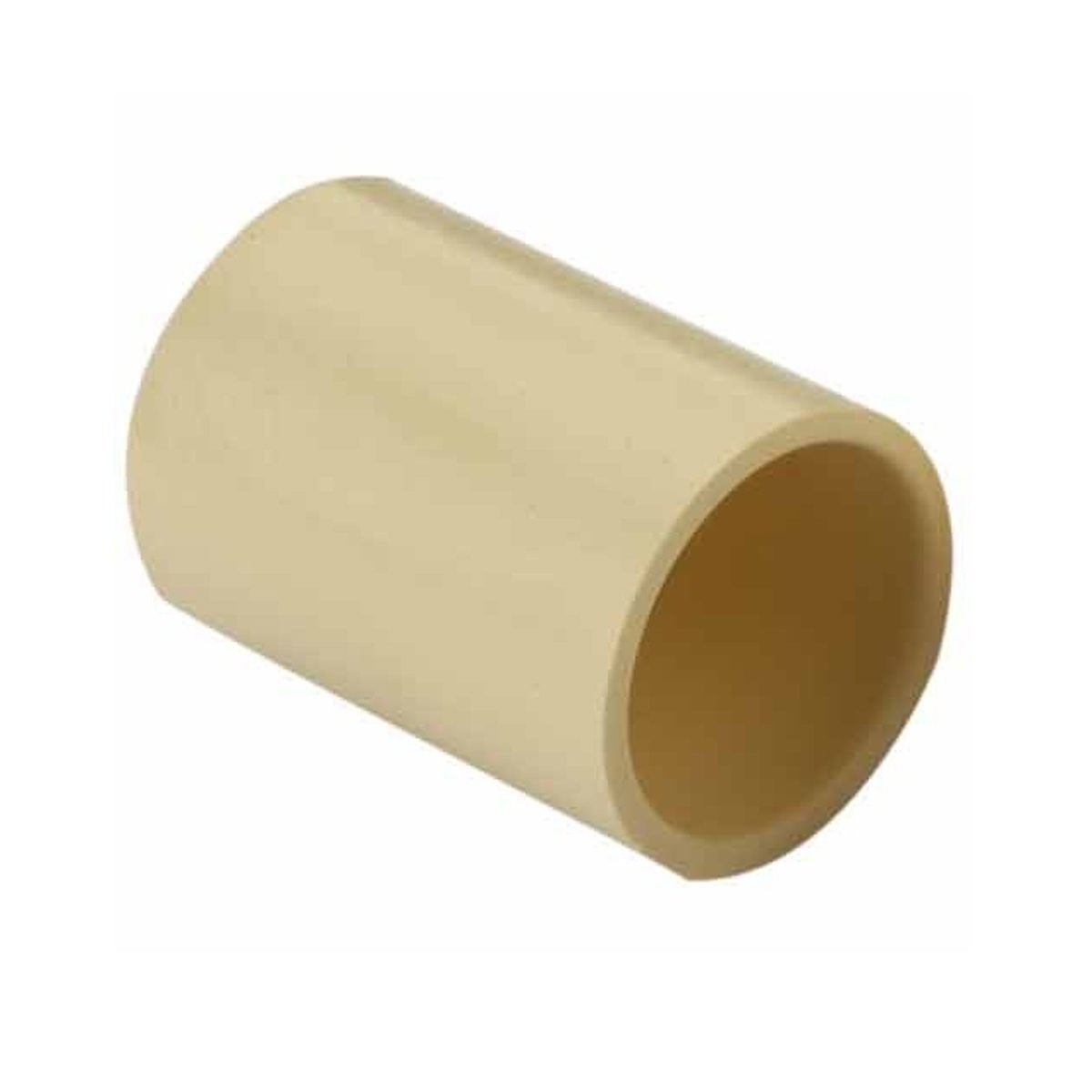

Ashirvad-grade CPVC coupler/socket fitting for joining two pipe lengths.
STRAIGHT COUPLING — Joins two lengths of CPVC pipe of the same size in a straight run.
SOLVENT-WELD BOTH ENDS — Both ends join with CPVC Solvent Cement for a permanent seal.
COMPACT SOCKET FITTING — Low-profile design that doesn't add unnecessary bulk to the line.
Specifications
Brand
Ashirvad
Material
CPVC
Available Sizes
3/4 inch, 1 inch, 1 1/4 inch, 1 1/2 inch, 2 inch
Connection Type
Solvent Weld
How to Use
1. Cut & Deburr — Cut the CPVC pipe square with a hacksaw or pipe cutter, then deburr the edge and lightly chamfer it so it seats fully into the fitting.
2. Dry-Fit — Test-fit the pipe and fitting without cement to confirm alignment and depth before applying any adhesive.
3. Apply Solvent Cement — Apply Ashirvad CPVC Solvent Cement evenly to both the pipe end and the inside of the fitting socket.
4. Join & Hold — Push the pipe fully into the fitting with a quarter-turn, align it correctly, and hold for 30 seconds while the joint sets.
5. Cure Before Pressure Testing — Let the joint cure per the cement's instructions before pressurizing the line — usually a few hours for handling, longer for full pressure.
FAQ
Q: Can I use this to repair a damaged section of pipe? A: Yes — cut out the damaged section and join the new piece with couplers on each side.
