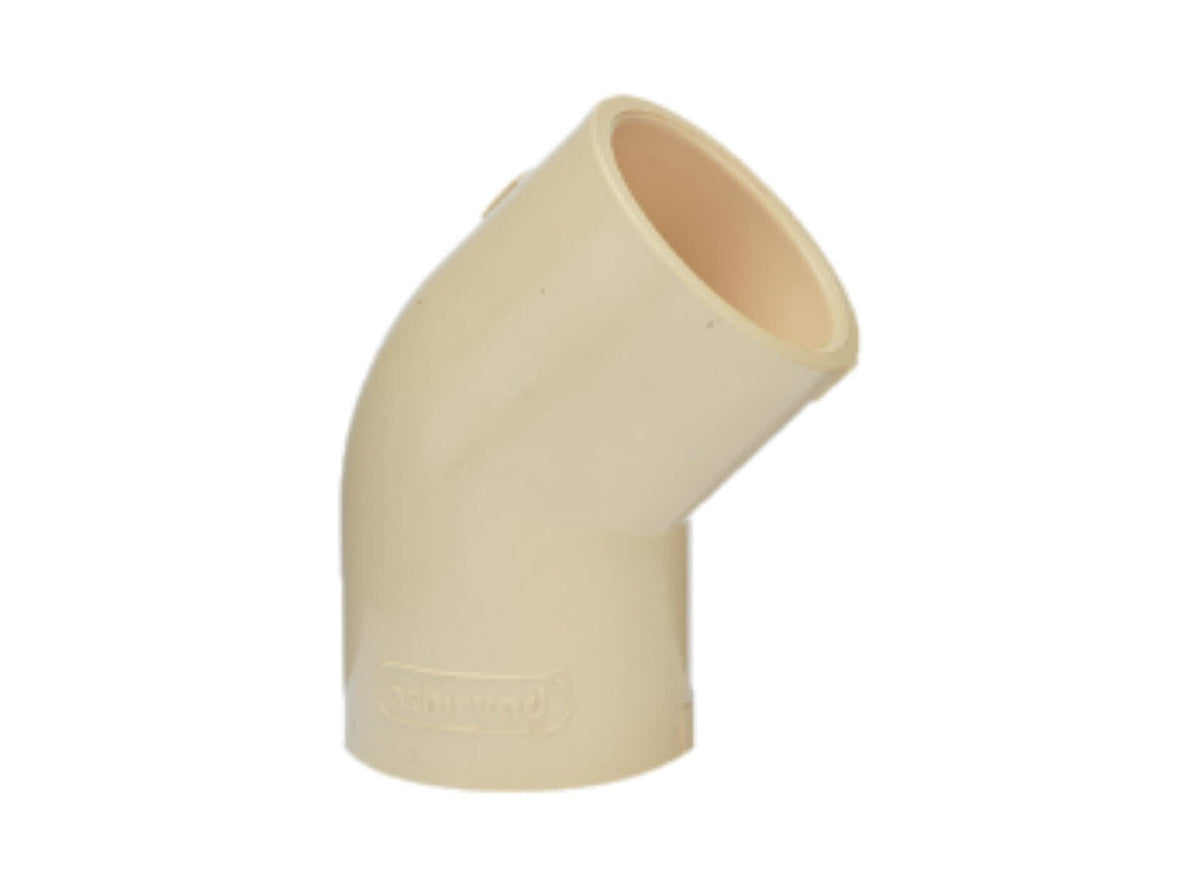

Ashirvad-grade CPVC 45-degree elbow fitting for angled pipe runs.
45-DEGREE ANGLE — Redirects a CPVC line at a gentler angle than a 90° elbow, reducing flow turbulence.
SOLVENT-WELD BOTH ENDS — Both socket ends join with CPVC Solvent Cement.
CORROSION & HEAT RESISTANT — Suitable for hot and cold water plumbing.
Specifications
Brand
Ashirvad
Material
CPVC
Available Sizes
3/4 inch, 1 inch, 1 1/4 inch, 1 1/2 inch, 2 inch
Connection Type
Solvent Weld
How to Use
1. Cut & Deburr — Cut the CPVC pipe square with a hacksaw or pipe cutter, then deburr the edge and lightly chamfer it so it seats fully into the fitting.
2. Dry-Fit — Test-fit the pipe and fitting without cement to confirm alignment and depth before applying any adhesive.
3. Apply Solvent Cement — Apply Ashirvad CPVC Solvent Cement evenly to both the pipe end and the inside of the fitting socket.
4. Join & Hold — Push the pipe fully into the fitting with a quarter-turn, align it correctly, and hold for 30 seconds while the joint sets.
5. Cure Before Pressure Testing — Let the joint cure per the cement's instructions before pressurizing the line — usually a few hours for handling, longer for full pressure.
FAQ
Q: When would I use a 45° elbow instead of a 90°? A: When you need a gentler directional change with less flow resistance, or to route around an obstacle at an angle.
