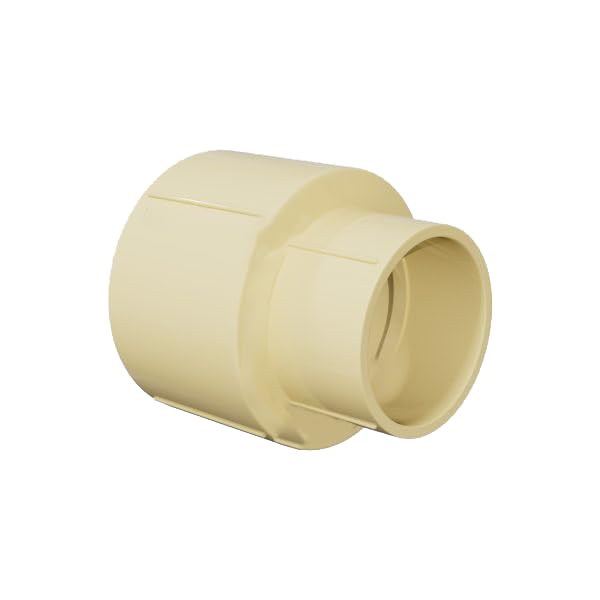

The Ashirvad CPVC Reducer Coupler connects two CPVC pipes of different diameters in a straight run, allowing a smooth transition between pipe sizes. Built from high-quality CPVC, it delivers a strong, leak-resistant joint with excellent resistance to heat, pressure and corrosion, making it ideal for hot and cold water plumbing networks.
STRAIGHT SIZE TRANSITION — Connects two CPVC pipes of different diameters in a straight run.
SOLVENT-WELD BOTH ENDS — Both ends join with CPVC Solvent Cement.
SMOOTH BORE DESIGN — Minimizes turbulence at the size transition point.
Specifications
Brand
Ashirvad
Material
CPVC
Available Sizes
1 inch x 3/4 inch, 1 1/4 inch x 1 inch, 1 1/4 inch x 3/4 inch, 1 1/2 inch x 1 1/4 inch, 2 inch x 1 1/2 inch
Connection Type
Solvent Weld
How to Use
1. Cut & Deburr — Cut the CPVC pipe square with a hacksaw or pipe cutter, then deburr the edge and lightly chamfer it so it seats fully into the fitting.
2. Dry-Fit — Test-fit the pipe and fitting without cement to confirm alignment and depth before applying any adhesive.
3. Apply Solvent Cement — Apply Ashirvad CPVC Solvent Cement evenly to both the pipe end and the inside of the fitting socket.
4. Join & Hold — Push the pipe fully into the fitting with a quarter-turn, align it correctly, and hold for 30 seconds while the joint sets.
5. Cure Before Pressure Testing — Let the joint cure per the cement's instructions before pressurizing the line — usually a few hours for handling, longer for full pressure.
FAQ
Q: How do I know which reducer size I need? A: Match both ends to the outer diameters of the two pipe sizes you're connecting — see the size options above.
