Description

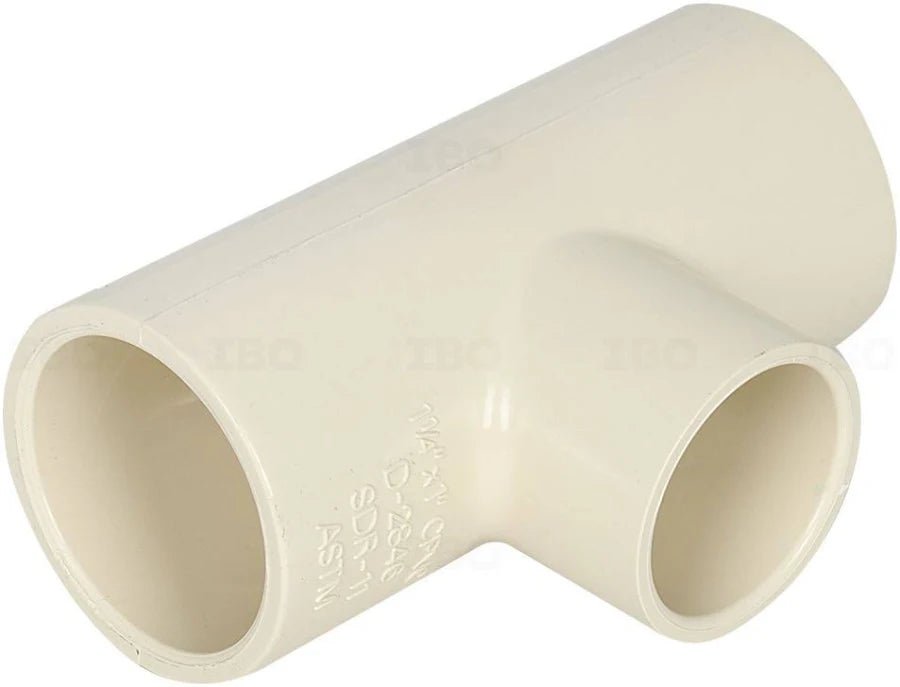

The Ashirvad CPVC Reducer Tee branches a CPVC pipeline into a smaller diameter line while maintaining a secure, leak-free connection. Manufactured from high-grade CPVC, this fitting offers outstanding chemical resistance, pressure handling and durability, making it a reliable choice for hot and cold water distribution systems.
REDUCING BRANCH FITTING — Branches a CPVC line into a smaller-diameter line while keeping the main run size.
SOLVENT-WELD ALL ENDS — All ends join with CPVC Solvent Cement.
LEAK-FREE BRANCH JOINT — Delivers a secure, leak-free connection at the size transition.
Specifications
Brand
Ashirvad
Material
CPVC
Available Sizes
1 inch x 3/4 inch, 1 1/4 inch x 1 inch, 1 1/4 inch x 3/4 inch, 1 1/2 inch x 1 1/4 inch, 2 inch x 1 1/2 inch
Connection Type
Solvent Weld
How to Use
1. Cut & Deburr — Cut the CPVC pipe square with a hacksaw or pipe cutter, then deburr the edge and lightly chamfer it so it seats fully into the fitting.
2. Dry-Fit — Test-fit the pipe and fitting without cement to confirm alignment and depth before applying any adhesive.
3. Apply Solvent Cement — Apply Ashirvad CPVC Solvent Cement evenly to both the pipe end and the inside of the fitting socket.
4. Join & Hold — Push the pipe fully into the fitting with a quarter-turn, align it correctly, and hold for 30 seconds while the joint sets.
5. Cure Before Pressure Testing — Let the joint cure per the cement's instructions before pressurizing the line — usually a few hours for handling, longer for full pressure.
FAQ
Q: When would I need a reducer tee instead of a standard tee? A: When the branch line off your main run needs to be a smaller diameter than the main pipe.
