CPVC Step Over Bend - Buildenza

CPVC Step Over Bend

3/4"
₹82.00 ₹144.00
Skip to product information
CPVC Step Over Bend - Buildenza
  • CPVC Step Over Bend - Buildenza
CPVC Step Over Bend

CPVC Step Over Bend

₹144.00 ₹82.00
Taxes included. Shipping calculated at checkout.
In stock
Size

Best For

Bypassing Obstacles Tight Plumbing Layouts Residential Plumbing
Description

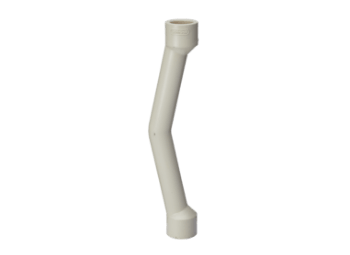

The Ashirvad CPVC Step Over Bend is engineered to bypass obstacles such as beams or crossing pipes without altering the pipe alignment. Made from premium CPVC material, this fitting maintains consistent flow while offering the durability, heat resistance and corrosion resistance CPVC piping is known for. It is well suited for tight plumbing layouts where standard bends cannot be used.

  • OBSTACLE BYPASS DESIGN — Routes a CPVC line around beams or crossing pipes without altering overall alignment.
  • SOLVENT-WELD BOTH ENDS — Both ends join with CPVC Solvent Cement.
  • MAINTAINS FLOW — Keeps consistent flow through the bypass, unlike improvised double-elbow workarounds.
Specifications
Brand Ashirvad
Material CPVC
Available Sizes 3/4 inch, 1 inch, 1 1/4 inch, 1 1/2 inch, 2 inch
Connection Type Solvent Weld
How to Use

1. Cut & Deburr — Cut the CPVC pipe square with a hacksaw or pipe cutter, then deburr the edge and lightly chamfer it so it seats fully into the fitting.

2. Dry-Fit — Test-fit the pipe and fitting without cement to confirm alignment and depth before applying any adhesive.

3. Apply Solvent Cement — Apply Ashirvad CPVC Solvent Cement evenly to both the pipe end and the inside of the fitting socket.

4. Join & Hold — Push the pipe fully into the fitting with a quarter-turn, align it correctly, and hold for 30 seconds while the joint sets.

5. Cure Before Pressure Testing — Let the joint cure per the cement's instructions before pressurizing the line — usually a few hours for handling, longer for full pressure.

FAQ

Q: When do I need a step-over bend instead of two elbows?
A: When you need to bypass an obstacle cleanly in a tight space — it's a purpose-built single fitting instead of joining two elbows.
