Branch Connections to Metal FixturesTaps & ValvesLong-Term Durability
Description

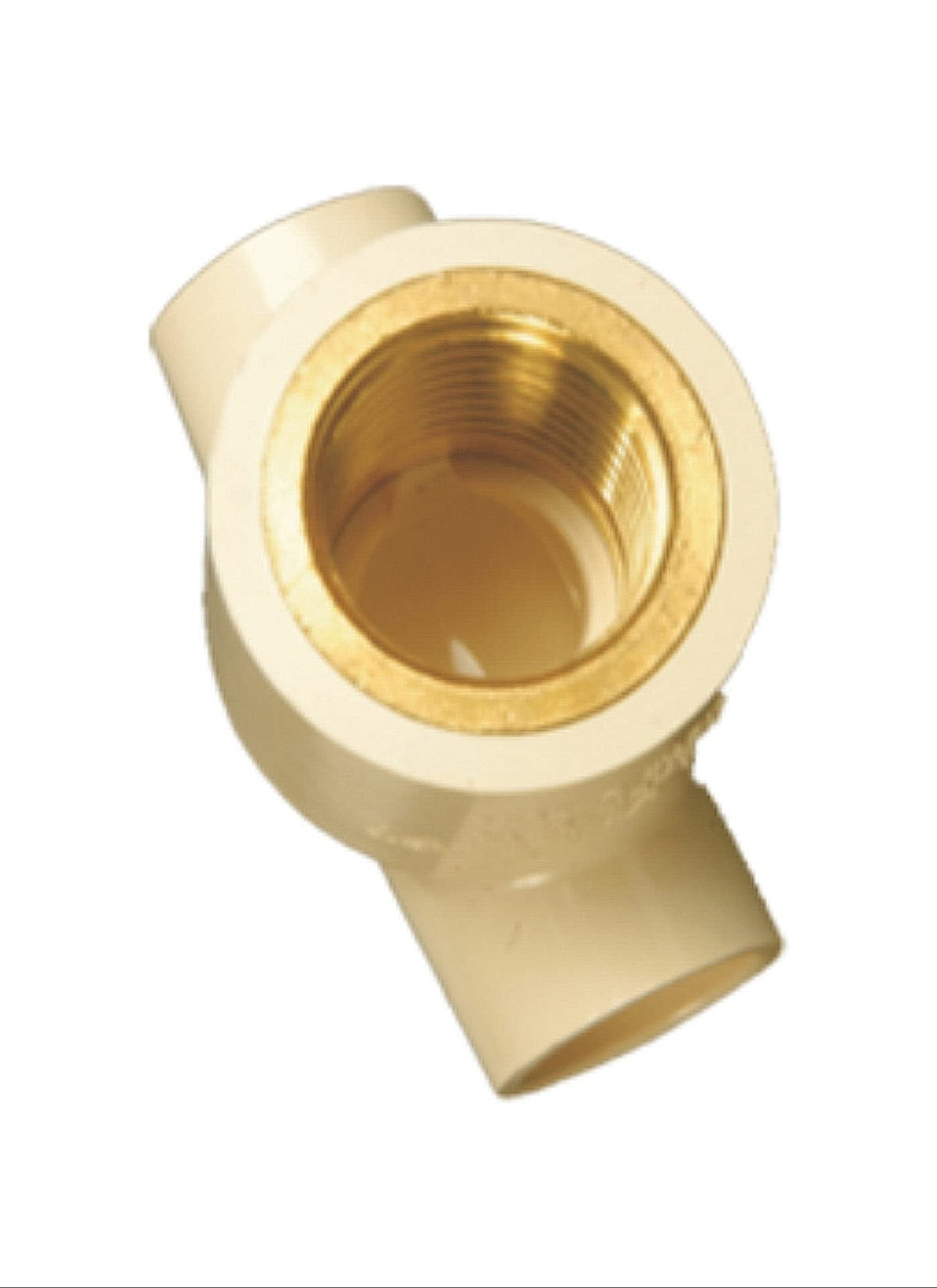

The Ashirvad CPVC Tee with Brass Threaded outlet allows a threaded branch connection off a CPVC pipeline, combining the corrosion resistance of CPVC with the strength and sealing reliability of a brass thread. It is commonly used to connect taps, valves and other threaded fixtures directly into a CPVC plumbing line.
CPVC BRANCH + BRASS THREADED OUTLET — Two ends solvent-weld to CPVC pipe; the branch outlet has a brass thread.
DIRECT FIXTURE CONNECTION — Connects taps, valves, and metal fixtures directly into a CPVC line.
Specifications
Brand
Ashirvad
Material
Brass + CPVC
Available Sizes
3/4 inch x 1/2 inch, 3/4 inch x 3/4 inch, 1 inch x 1/2 inch, 1 inch x 1 inch
Connection Type
Brass Thread + Solvent Weld
How to Use
1. Cut & Deburr — Cut the CPVC pipe square with a hacksaw or pipe cutter, then deburr the edge and lightly chamfer it so it seats fully into the fitting.
2. Dry-Fit — Test-fit the pipe and fitting without cement to confirm alignment and depth before applying any adhesive.
3. Apply Solvent Cement — Apply Ashirvad CPVC Solvent Cement evenly to both the pipe end and the inside of the fitting socket.
4. Join & Hold — Push the pipe fully into the fitting with a quarter-turn, align it correctly, and hold for 30 seconds while the joint sets.
5. Cure Before Pressure Testing — Let the joint cure per the cement's instructions before pressurizing the line — usually a few hours for handling, longer for full pressure.
6. Wrap the Threaded End — Wrap 2-3 turns of Teflon tape clockwise around the male thread before connecting the fixture.
FAQ
Q: Do I need Teflon tape on the brass outlet? A: Yes — wrap the fixture's male thread with Teflon tape before connecting.
